Ply-strip
PLY-STRIP radiant panels are single-phase, long-wave infrared electric heaters.
They are suitable for heating both residential and commercial and industrial environments.
- Direct heating of specific areas to be heated and maximum energy efficiency.
- Does not dry the air.
- Evenly distributed heat, using long wave infrared which heats bodies andsurfaces, avoiding the creation of temperature stratification in the air.
- No noise and does no move the air, minimizing the movement of dust and therefore allergies.
- Does not consume oxygen, keeping the air more breathable.
- Quick and easy installation
The advantage of long wave radiant technology through aluminium elements installed on the ceiling which simultaneously constitute the heat source and the radiating surface in direct contact with the air, ensure homogeneous heating of the area above which they have been installed, with exceptional thermal comfort, eliminating the disadvantage s of alternative heating system (gas unit heaters, infrared lamps or halogen mushrooms) used up to now in similar applications.
PLY-STRIP panels can be used both with single – phase 230 V and three-phase 400 V power supplies, provided they have a neutral, a chice that can be made directly by the installer in agreement with the end user.
Using a three – phase connection, it will be possible to reduce the power absorbed in less cold periods by using anly a part of the heating system created.

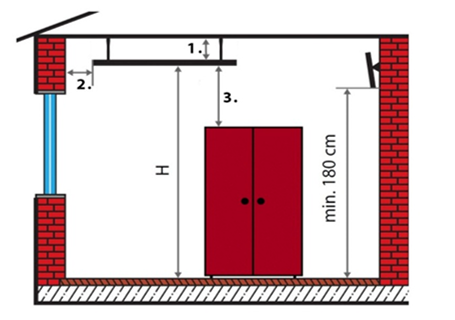

(H) Minimum installation height of the appliance = 180 cm from the floor.
1- Minimum distance from the walls, 25cm.
2- Minimum distance from other nearby objects, 50cm.
The features of the panel
The principle of the operation of the device is as follows: the tubular heating element heats plates, which then emit infrared radiation, which then heats up the surface of bodies and object on which it falls (walls, floors, persons, etc.). The surface temperature of object increases depending on their properties (surface colour, material), angle of the infrared rays and surface shape.
