HOT OUT IRON
HOT OUT IRON
HOT OUT IRON: the industrial modular electric heating. No noise, no dust, discover the helthy and priceless heating floor feeling. Designed e Made in Italy. High savings, focused heating. Plyterm technology offer HOT OUT IRON. Made in Italy, patented, that allows you to safely heat also the more hostile industrial spaces. The steel structure support weights over 10 ton for sqm.

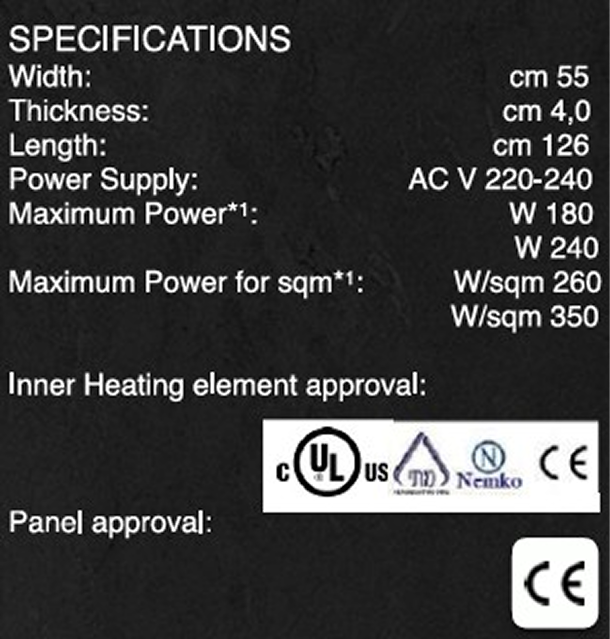

Panel surface
- The power indicated is the maximum rated power if the module is connected to the power supply without any control device.
- Values valid for room T. not lower than 3* C. Below this T. the module's Delta T range may drop.
Panel surface
The external shell material is galvanized steel. The galvanizing treatment protects against oxidation from humidity or chemical agents of various types. The internal soul is ABS plastic IP grade protection 65.
- The power indicated is the maximum rated power if the module is connected to the power supply without any control device.
- Values valid for room T. not lower than 3* C. Below this T. the module's Delta T range may drop.

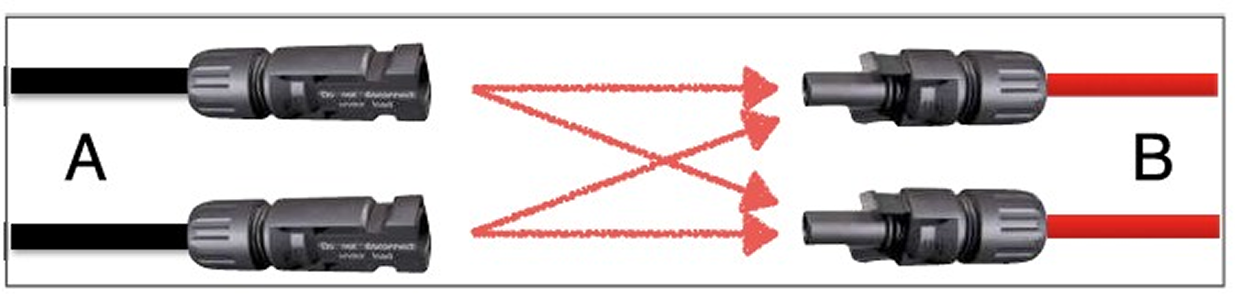

Installation - Sequence of hooking
The connectors used in Hot Out Iron panels are MC4. They are certified and guarantee WATERPROOF connectors. The connection is made just pushing the connectors. The connection is done manually without the use of a crimper. Make sure component A is fully inserted into component B. Make sure the connection between A and B has not polarity order between the two panels.
Installation - Sequence of hooking
The connectors used in Hot Out Iron panels are MC4. They are certified and guarantee WATERPROOF connectors. The connection is made just pushing the connectors. The connection is done manually without the use of a crimper. Make sure component A is fully inserted into component B. Make sure the connection between A and B has not polarity order between the two panels.
